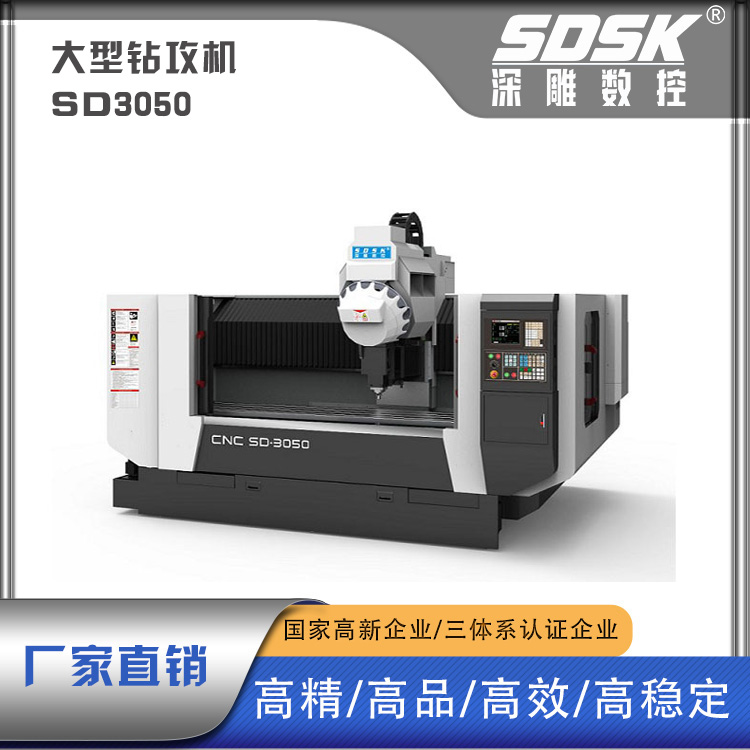

Large profile machining center SD3050-BT40 precision parts processing for steel, copper, aluminum, acrylic and other materials

Large profile machining center; SD3050-BT40




2、 List of Main Machine Configuration (Unit: mm)
Regulations; Grid; Speak; bright
quantity
Origin
Deep carving CNC system/XY4.5, Z3KW servo motor/spindle servo drive 7.5-11KW
full set
Beijing
Use Taiwan Shangyin/Intime for XYZ axis; Precision ball linear guide (XY30, Z35)
full set
Taiwan
Taiwan TBI for XYZ axis; Precision grinding grade ball screw (X5020, Y40, Z32)
full set
Taiwan
Taiwan Dayue Straight Knot Long Nose Spindle BT40-150-560-12000/Circular Water Spray (Equipped with Hydraulic Knife Punching Cylinder)
1 unit
Taiwan
16 bit UFO style knife magazine (Taiwan Shengjie)
1 set
Taiwan
Cast iron bed body (HT300)
1 set
self-control
Cast iron mechanical parts (HT300)
1 batch
self-control
Distribution cabinet air conditioning constant temperature system (Reid)
1 set
Dongguan
Schneider Electrical Accessories (Schneider)
1 batch
Germany
Imported NSK/KOYO; P-grade angular contact paired bearings
full set
Japan
Spindle oil cooler (Reid)
1 unit
Dongguan
Electronic handwheel (Shenzhen Jingdiao)
1 set
self-control
Knife setting instrument (Shenzhen Jingdiao)
1 unit
self-control
X-axis equipped with three proof cloth organ cover (Y/Z-axis retractable steel plate cover)
1 set each
self-control
X/Y/Z axis plastic drag chain (Dingtai)
1 set each
Dongguan
Automatic lubrication oil pump (Proton)
1 set
Dongguan
Air filter (Japanese Lehman M107-A air filter)
1 set
Zhejiang
Water spray device
1 set
self-control
Water pump 750W (Snar)
1 set
