1、 Machine Introduction:
1. The SD-4500V7-2-BT40 model series is a large double head and double channel profile machining center specially designed for customers; Crown block structure; Equivalent to two machines using one set of CNC system and one set of bed; Can process two different workpieces simultaneously, can also process the same workpiece in segments with both ends, or can process two identical workpieces simultaneously; The dual Y-axis machine head moves forward and backward, and the motion mechanism is designed on the top of the crossbeam, which is lightweight, convenient, and easy to clean. It can move forward and backward simultaneously or independently. The 2X-axis machine head can move left and right simultaneously or independently, and the 2Z-axis spindle can move up and down simultaneously or independently. When processing batch products, both ends can be used simultaneously, making debugging simple and convenient. The X1 axis can also be moved to the left side of the machine to process long stroke workpieces separately using the X2 axis, achieving a dual-use function< Br/>
2. Additional functions such as fourth rotation axis, side milling head, and probe can be added< Br/>
3. Especially suitable for precision engraving, milling, drilling, tapping and other processing of various types of steel, copper, aluminum, acrylic, plastic and other parts< Br/>

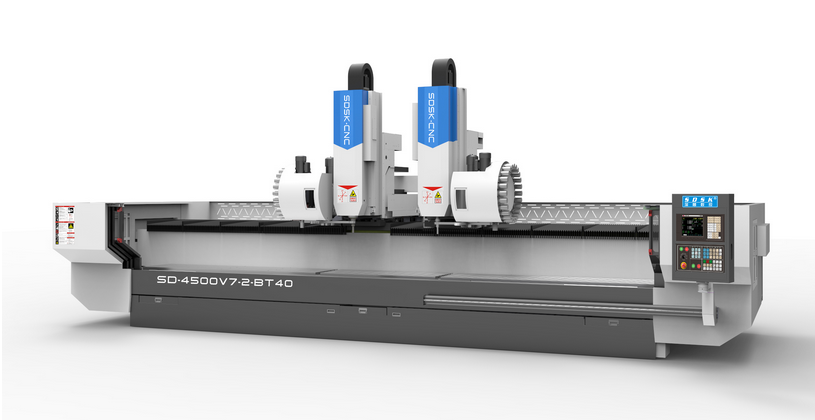

(The picture is for reference only, subject to the actual product)
2、 List of Main Machine Configuration (Unit: mm)
Regulations; Grid; Speak; bright
quantity
Origin
Mitsubishi CNC system - dual channel/2X2Y2Z servo motor/2-11KW spindle servo drive
full set
Japanese version
2X axis linear motor
full set
Shenzhen
2X axis grating ruler, reading head (1um)
2 sets
Britain
Taiwan TBI Precision Ball Screw (YZ40) for 2Y/2Z Axis
2 sets each
Taiwan
2X/2Y/2Z axis for Taiwan Shangyin/Intime/Dinghan& Nbsp; Precision level (X35, Z35 ball linear guide, Y35 roller linear guide)
full set
Taiwan
Taiwan Dayue Direct Connection Long Nose Spindle BT40/150/12000rpm/ Circular water spray (equipped with hydraulic knife punching cylinder)
Two
Taiwan
24T disc cutter magazine (Okada)
2 sets
Taiwan
The body adopts a combination of steel plate welding and cast iron bed structure, with the main accessories being cast iron mechanical parts (HT300)
1 set
self-control
Distribution cabinet constant temperature air conditioning system (Red)
1 set
Dongguan;
Schneider Electrical Accessories (Schneider)
1 batch
Tianjin
Import TBI/KOYO; P-grade angular contact paired bearings
full set
Taiwan
Spindle oil cooler (Reid)
1 unit
Dongguan
Electronic handwheel (Yupu)
1 set
Guangzhou
Knife setting instrument (Shenzhen Jingdiao )
1 unit
self-control
2X/2Y/2Z axis with organ cover
1 set each
self-control
2X/2Y/2Z axis plastic drag chain (Dingtai)
1 set each
Dongguan
Automatic lubrication oil pump (Proton)
1 set
Dongguan
Air filter (Japanese Lehman M107-A air filter)
1 set
Zhejiang
Water spray device
2 sets
self-control
Air gun, water gun
1 each
Shenzhen
Water pump 750W (Snar)
Two
Changzhou
Machine tool accessories
1 set
Shenzhen
BT40 Knife Handle/Complete Set of Reduced Nipple (Three in One)
10
Shenzhen
Chain plate slag discharge machine (optional)
1 set
self-control
3、 Main technical parameters of the equipment: (unit: mm)
model
SD4500V7-2-BT40
External dimensions
7300 in length, 3500 in width, and 3200 in height
Workbench size
X4500 * Y500 (T-slot M16)
Spindle nose end to countertop
Maximum 850 to minimum 150
2X/2Y/2Z stroke
X1/X2: maximum 3500~minimum 1100
2Y: 550
2Z: 700
Maximum idle speed XYZ
X: 55 meters/minute
Y: 48 meters/minute
Z: 30 meters/minute
Maximum processing speed
12 meters per minute
control system
Mitsubishi CNC System - Semi Closed Loop
Contour Control (2X)
Full closed-loop
servo system
AC servo
System resolution
zero point zero zero two
Three axis verticality
0.015mm
Whole machine positioning accuracy
0.02mm
Localization accuracy
Within 300 mm± 0.01mm
Repetitive positioning accuracy
0.005mm
Number of spindles
Two;
Spindle servo power
11KW/piece
Spindle servo torque
52.5N. m
Spindle speed
12000 rpm/min
Clamping tool handle
BT40
Disk cutter magazine
2 * 24 bits
Knife changing method
automatic
Knife alignment method
automatic
The countertop bears a load
2000Kg
Rated voltage
380V/50HZ
Maximum power of the entire machine
45KW
Overall weight
Approximately 15000kg
4、 Standard configuration and packing list of the host:
one
Controller
eleven
1 mechanical, electrical, and operation manual
two
Direct connection long nose spindle BT40/150/12000
twelve
Rigid tapping function
three
Automatic lubrication system
thirteen
Distribution cabinet constant temperature air conditioning
four
Adjustable foundation cushion block
fourteen
Operation Manual, Program Manual, and User Manual
five
Toolbox
fifteen
10 BT40 blade heads (including rivets and wrenches)
six
Work lights
sixteen
BT40 locking tool holder
seven
Warning lights
seventeen
