Double head profile machining center SD3565-2-BT40

Double head profile machining center SD3565-2-BT40

Description
Double headed profile machining center SD3565-2BT40 series models - Technical parameters and configuration sheet



1、 Machine Introduction:

The SD-2-BT40 model series is a customized double end profile machining center for customers; The body adopts a cast iron bed structure; Equipped with Shengjie 24T disc cutter library; The tool changing speed is 2 seconds, greatly improving production efficiency; The movement mode is to move the Y-axis workbench forward and backward, the 2X-axis machine head can move left and right simultaneously or independently, and the 2Z-axis spindle can move up and down simultaneously or independently. When processing batch products, dual workstations and dual heads can be used to process products simultaneously, which can greatly improve production efficiency; It is also possible to move the X1 axis to the left side of the machine tool and use the X2 axis to process long stroke workpieces separately, achieving a dual-use function. Adopting Huazhong CNC system, Huichuan servo motor, Taiwan Shangyin/Yintai precision linear guide rail, precision ball screw, German coupling, advanced spindle cooling system, automatic lubrication system, coolant circulation water spray system, ensuring higher machining accuracy, speed and stability; Especially suitable for precision engraving, milling, drilling, and tapping of various types of steel, copper, aluminum, acrylic, plastic and other parts< Br/>
An additional fourth axis of rotation can be added< Br/>

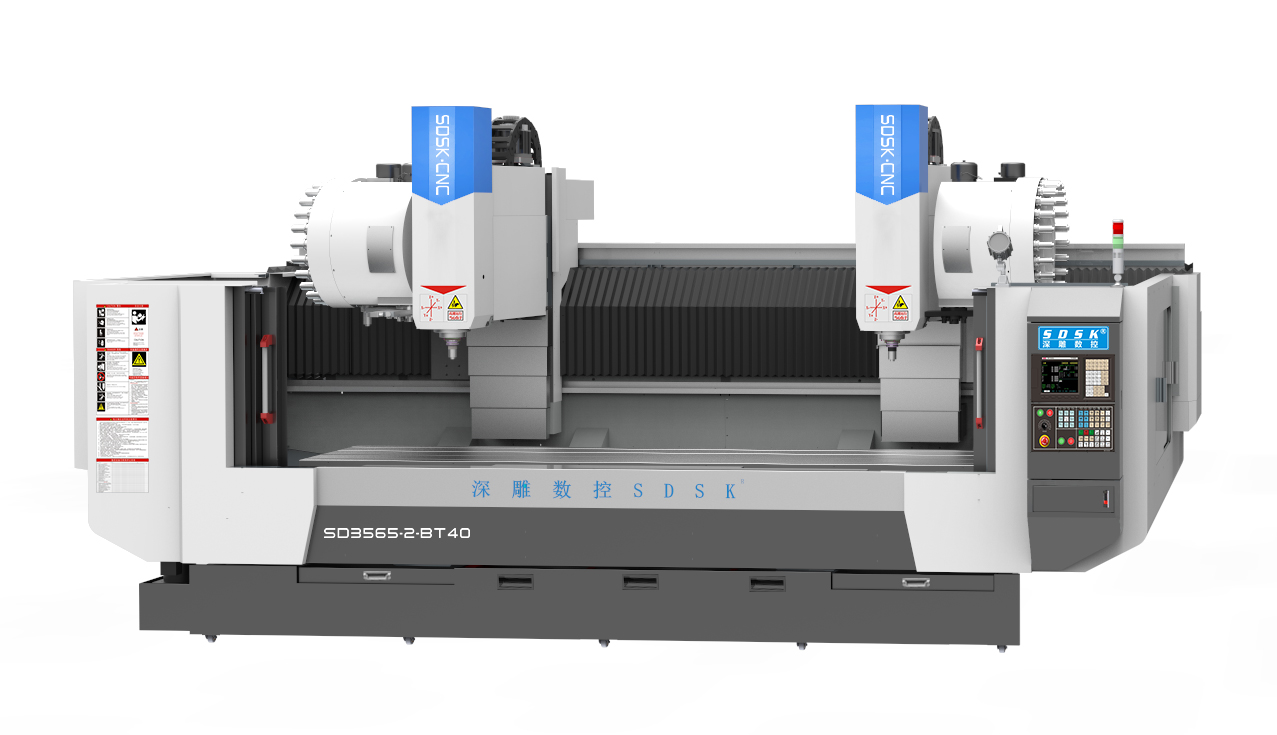

(Similar in appearance, subject to actual product)

2、 List of Main Machine Configuration (Unit: mm)
Regulations; Grid; Speak; bright
quantity
Origin
Huazhong CNC system/2XY axis 4.4KW/2Z axis 2.9KW servo motor/2-7.5KW spindle servo drive

(Note: Linear motor can be selected separately for X-axis)
full set
Beijing
Taiwan TBI precision grade (XY50mm, Z40mm) ball screw for 2X/Y/2Z axis
full set
Taiwan
2X/Y/2Z axis using Taiwan Shangyin/Intime& Nbsp; Precision grade (35mm) ball linear guide

(Note: Linear motor can be selected separately for X-axis)
full set
Taiwan
Taiwan Dayue Straight Spindle BT40-140AS-12000 Short Nose
Two
Taiwan
Taiwan Shengjie 24 position arm type knife magazine
2 sets
Taiwan
Cast iron bed body (HT250)
1 set
self-control
Cast iron mechanical parts (HT250)
1 batch
self-control
Outer cover: 2mm steel plate, powder coating (stainless steel water tank)
full set
self-control
Distribution cabinet constant temperature system (Reid)
1 set
Dongguan;
Schneider Electrical Accessories (Schneider)
1 batch
Tianjin
Import GMI; P-grade angular contact paired bearings
full set
Taiwan
Spindle oil cooler (Reid)
1 unit
Dongguan
Electronic handwheel (Yupu)
1 set
Guangzhou
Knife setting instrument (Shenzhen Jingdiao )
1 unit
self-control
X-axis with organ cover/YZ axis with steel plate cover
1 set each
self-control
X/Y/Z axis plastic drag chain (Dingtai)
1 set each
Dongguan
Automatic lubrication oil pump (Proton)
1 set
Dongguan
Air filter (Japanese Lehman M107-A air filter)
2 sets
Zhejiang
Water spray device
2 sets
self-control
Water pump (Snell)
1 unit
Changzhou
Chain plate automatic slag discharge machine (note: optional)
nothing
Shenzhen
Machine tool accessories
1 set
Shenzhen
BT40 Knife Handle/Complete Set of Reduced Nipple (Three in One)
10
Shenzhen
3、 Main technical parameters of the equipment: (unit: mm)
model
SD3565-2-BT40
SD4065-2-BT40
SD4565-2-BT40
External dimensions
5350 in length, 2950 in width, and 3000 in height
5850 in length, 2950 in width, and 3000 in height
6530 in length, 2950 in width, and 3000 in height
Workbench size
X3500 * Y600 (T-slot)
X4000 * Y600 (T-slot)
X4500 * Y600 (T-slot)
Spindle nose end to countertop
seven hundred and fifty
seven hundred and fifty
seven hundred and fifty
2X/Y/Z stroke
X1-3550 * 720 * 650

X2-1750 * 720 * 650
X1-4050 * 720 * 650

X2-2000 * 720 * 650
X1-4550 * 720 * 650

X2-2250 * 720 * 650
Maximum idle speed XYZ
X35m/min

Y48m/min

Z40m/min
X35m/min

Y48m/min

Z40m/min
X35m/min

Y48m/min

Z40m/min
Maximum processing speed
12m/min
12m/min
12m/min
control system
Huazhong CNC system
Huazhong CNC system
Huazhong CNC system
servo system
AC servo
AC servo
AC servo
System resolution
zero point zero zero two
zero point zero zero two
zero point zero zero two
Three axis verticality
0.015mm
0.015mm
0.015mm
Whole machine positioning accuracy
0.02mm
0.02mm
0.02mm
Localization accuracy
Within 300 mm± 0.01mm
Within 300 mm± 0.01mm
Within 300 mm± 0.01mm
Repetitive positioning accuracy
0.005mm
0.005mm
0.005mm
Number of spindles
Two;
Two;
Two;
Spindle servo drive power
7.5KW/piece
7.5KW/piece
7.5KW/piece
Spindle speed
12000 rpm/min
12000 rpm/min
12000 rpm/min
Clamping tool handle
BT40
BT40
BT40
Arm type tool magazine
24T * 2
24T * 2
24T * 2
Knife changing method
automatic
automatic
automatic
Knife alignment method
automatic
automatic
automatic
Loading height
600mm
600mm
600mm
The countertop bears a load
2000Kg
2000Kg
2000Kg
Rated voltage
380V/50HZ
380V/50HZ
380V/50HZ
Maximum power of the entire machine
35KW
35KW
35KW
Overall weight
11500Kg
13500Kg
15500Kg
Unit price

Including tax and freight
&Nbsp;
&Nbsp;
&Nbsp;


4、 Standard configuration and accessories for the host:
one
Controller
eleven
logo
Scan the QR code, follow the official account for more information

Contact:Mr.zhou

Mobile:13924586646

Telephone:0755-29423909

Email:sz_jdsk@163.com

Address:Bright new district of shenzhen hai westfield neighborhood community fourth industrial zone 6 area A house

Branch address: No. 199 Longshan Road, Ma'anshan Economic and Technological Development Zone/Office: No. 1399 Sufu Road, Xukou Town, Wuzhong District, Suzhou City, Jiangsu Province
