1、 Machine Introduction:
1. The SDSK2518V5-BT40 model is a lightweight 2.5-meter gantry machining center specially designed for customers; Fixed beam structure; Equipped with Taiwan Shengjie 16 bit UFO style knife magazine, with a tool changing speed of 2 seconds; The movement mode is to move the Y-axis workbench forward and backward, the X-axis to move left and right, and the Z-axis to move up and down< Br/>
2. The body adopts a top-notch granite (marble) structure that never deforms; Three axis adopts imported Taiwan Shangyin precision linear guide rail, Taiwan TBI; Grinding grade ball screw, German coupling, servo motor, distribution cabinet constant temperature system, advanced spindle cooling system, automatic lubrication system, water circulation cooling liquid spray system, air filtration device, ensuring higher processing accuracy, speed and stability; Especially suitable for precision engraving, milling, cutting, expanding, punching, tapping and other processing of various types of steel, copper, aluminum, acrylic, plastic and other parts< Br/>
3. The front door and left and right doors of the machine tool adopt an electric lifting door structure, and the three doors can be lifted and lowered simultaneously or individually. The three doors are lowered to the lowest, providing sufficient operating space for the robot to automatically load and unload materials< Br/>
4. Additionally, a fourth rotary shaft, side milling head, and probe function can be added< Br/>
&Nbsp& Nbsp< Br/>

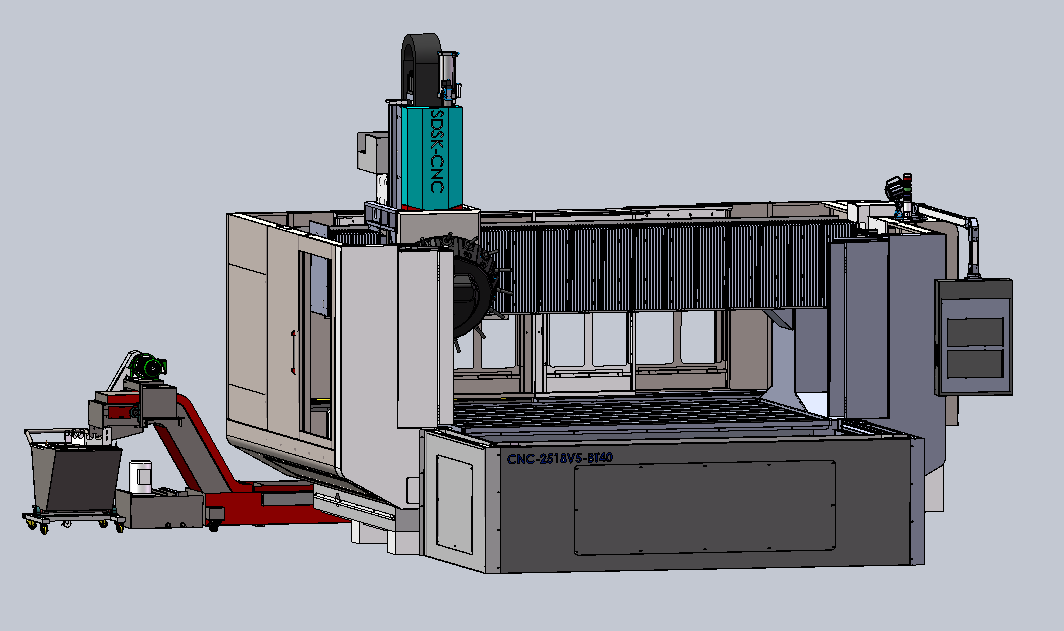

(The pictures are for reference only, subject to the actual product)
2、 List of Main Machine Configuration (Unit: mm)
Number
Regulations; Grid; Speak; bright
quantity
Origin
&Nbsp;
Deep carving CNC system/3-axis 3KW Huichuan servo motor, Z-band brake/spindle servo drive 7.5-11KW
full set
Germany
&Nbsp;
Taiwan Dayue straight nose spindle BT40-150-560-12000/with cooling water outlet (equipped with hydraulic cutting cylinder)
full set
Taiwan
&Nbsp;
Taiwan Shengjie 16T UFO servo tool magazine
1 set
Taiwan
&Nbsp;
XYZ axis using Taiwan/Intime/ & Nbsp; Precision linear guide& Nbsp; (X45, YZ35)
full set
Taiwan
&Nbsp;
Taiwan TBI for XYZ axis; Precision grade grinding ball screw; (XY50, Z32)
full set
Taiwan
&Nbsp;
Outer cover: 2mm steel plate, painted, with electric automatic lifting doors on the front, left, and right sides
1 set
self-control
&Nbsp;
Aluminum workbench size: 2500 in X direction, 1800 in Y direction, thickness 50, with T-shaped groove
1 set
self-control
&Nbsp;
Marble body, marble crossbeam
1 set
Shandong Province
&Nbsp;
Cast iron mechanical parts
1 batch
self-control
&Nbsp;
Distribution cabinet constant temperature system (Reid)
1 set
Dongguan
&Nbsp;
Schneider Electric Accessories
1 batch
Germany
&Nbsp;
Imported NSK/KOYO/TBI& Nbsp; P-grade angular contact paired bearings
full set
Import
&Nbsp;
Spindle oil cooler (Reid)
1 unit
Dongguan
&Nbsp;
Electronic Handwheel (Shenzhen Jingdiao)
1 set
self-control
&Nbsp;
Knife setting instrument (Shenzhen Jingdiao )
1 unit
self-control
&Nbsp;
X/Z-axis with three proof cloth organ cover (Y-axis with retractable stainless steel plate cover)
1 set each
self-control
&Nbsp;
X/Y/Z axis plastic drag chain
1 set each
Dongguan
&Nbsp;
Automatic lubrication oil pump (Proton)
1 set
Dongguan
&Nbsp;
Air filter (Japanese Lehman M107-A air filter)
2 sets
Zhejiang
&Nbsp;
Water spray device
1 set
self-control
&Nbsp;
Spray device (Proton)
1 set
Dongguan
&Nbsp;
Water pump 750W (Snar)
1 set
Changzhou
&Nbsp;
Machine tool accessories
1 set
Shenzhen
&Nbsp;
BT40 Knife Handle/Complete Set of Reduced Nipple (Three in One)
5
Shenzhen
&Nbsp;
Double screw+1 chain plate automatic slag discharge machine;
1 set
self-control
3、 Main technical parameters of the equipment: (unit: mm)
model
SDSK2518V5-BT40
Workbench size
2500 * 1800; (T-slot M14)
Gantry width
two thousand five hundred and sixty
Spindle nose end to workbench
Max 670~Min 170
Flying saucer tool magazine to workbench
Minimum 500
X-axis travel
two thousand five hundred and thirty
Travel Y-axis
one thousand eight hundred and thirty
Z-axis travel
five hundred
X/Y/Z fastest movement speed
X30 meters/minute
Y35 meters/minute
Z40 meters/minute
Maximum processing speed
12000mm/min
control system
Deep carving CNC system
servo system
AC servo
System resolution
zero point zero zero one
Three axis verticality
0.015mm
Whole machine positioning accuracy
&Plusmn; 0.02mm
Localization accuracy
Within 300± 0.01mm
Repetitive positioning accuracy
0. 004mm
Number of spindles
1 & Nbsp;
Spindle servo power
7.5-11KW
Spindle servo torque
35.8N. m
Spindle speed
12000 rpm/min
UFO type tool magazine
16 bit
Knife changing method
automatic
Clamping tool handle
BT40
Knife alignment method
automatic
The countertop bears a load
1500Kg
Rated voltage
380V/50HZ
Maximum power of the entire machine
21KW
Overall weight
About 13000kg
External dimensions (length * width * height)
About 4550 * 4700 * 3500
4、 Standard configuration and accessories for the host:
one
Controller
eleven
1 mechanical, electrical, and operation manual
two
Straight spindle BT40-150-560-12000 long nose
twelve
Rigid tapping function
three
Automatic lubrication system
thirteen
Electrical box heat exchanger
four
Adjustable foundation cushion block
fourteen
Operation Manual, Program Manual, and User Manual
five
Toolbox
fifteen
5 BT40 blade heads (including rivets and wrenches)
six
Work lights
sixteen
BT40 locking tool holder
seven
Warning lights
seventeen
&Nbsp; M14 Ma Tie
eight
Spindle blowing device
eighteen
One 6-inch screwdriver
nine
transmission line
nineteen
Lock Mouth; ER32 (4-20) 1 set
ten
Semi enclosed cover
twenty
Shield
5、 Machine environment and hardware facilities requirements
Number
Environmental projects
Project Requirements Standards
one
Power requirements
AC380V (4P) 50-60Hz, air switch 60A, power supply voltage fluctuation range 380V± Within 10%
two
air compressor
Using screw compressor, air storage tank, three-stage filtration,≥ 0.55Mpa, flow rate≥ 100L/min
three
Vacuum pressure
&Ge; 0.6 MPa
four
Air dryer
Must have an air dryer with automatic drainage function
five
Environmental noise/vibration
&Le; 75dba
six
Ground requirements
The ground is required to be flat, stable, and the difference between the highest and lowest points should not exceed 5mm
seven
Environmental humidity
Suggest 45% -65%
